Waters QSPI Degasser PCB 726000459 – Electronic Circuit Board Assembly

The Waters QSPI Degasser PCB 726000459 is an electronic printed circuit board assembly identified by the label “WATERS QSPI DEGASSER.” The board carries a serial number of 140073220 and additional identification markings, including 6512-6029 and a revision marking that appears to read REV L. These identifiers can help buyers and laboratory equipment service technicians identify the assembly and compare it with the original component when sourcing a replacement.

Waters is a manufacturer associated with analytical laboratory instrumentation, including liquid chromatography systems and related equipment. Degassing is an important process in many liquid chromatography applications because dissolved gases in the mobile phase can contribute to bubbles and interfere with stable instrument operation. A degasser is generally designed to remove dissolved gases from liquids before or during their use in an analytical instrument. However, the precise design, functionality, and compatible instrument models of this particular QSPI Degasser PCB must be confirmed using the appropriate technical documentation.

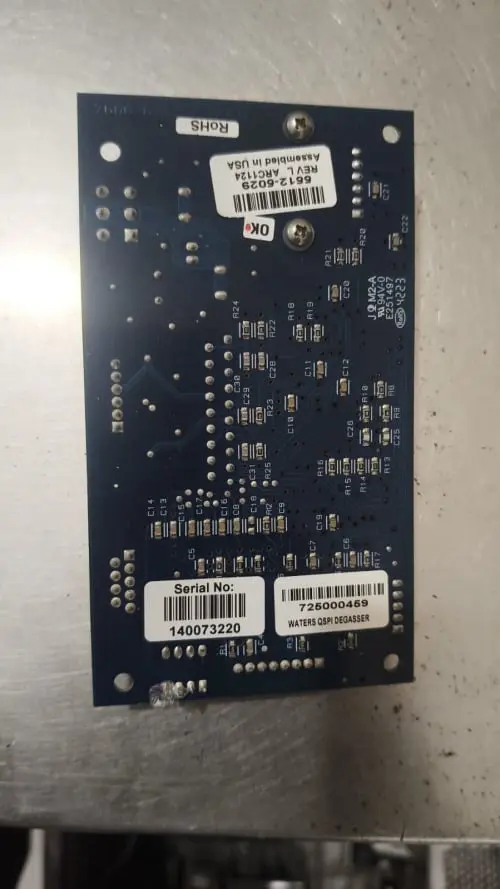

The pictured item is an electronic circuit board rather than a complete degasser unit. Its visible components include surface-mounted resistors, capacitors, soldered connections, printed conductive tracks, and component reference markings. The board also has barcode labels that provide useful identification information. These features are consistent with an electronic assembly intended to operate as part of a larger equipment system, although the specific functions of individual circuits cannot be established from the photograph alone.

For laboratory maintenance teams, sourcing the correct electronic assembly is important when repairing analytical instruments or maintaining spare-parts inventory. A replacement PCB should match the original unit's identification number, hardware revision, connector configuration, and intended equipment application. Components that appear similar may not be interchangeable because their circuitry, electrical ratings, or firmware can differ. The visible label number 726000459 should therefore be checked against the original part and the relevant instrument service documentation before purchase.

This Waters QSPI Degasser PCB may be considered for replacement assessment, laboratory equipment maintenance, troubleshooting, or refurbishment projects involving compatible equipment. The intended application must be verified before the board is installed. A qualified service technician should establish whether the assembly corresponds to the specific instrument model and whether any additional configuration, testing, or calibration procedures are required.

The PCB includes a serial-number label reading 140073220, which may be useful for traceability and service records. Another label appears to show 6512-6029 and REV L, together with the wording “Assembled in USA.” These markings should be recorded when comparing the product with an existing component. The exact relationship between these numbers and the manufacturer's official ordering part number has not been independently verified, so buyers should use the label information as an identification aid rather than assuming every marking is an interchangeable part number.

Before purchasing, customers should confirm the product condition and testing status. The supplied image does not establish whether the board is brand new, used, refurbished, tested, or fully functional. Buyers who require a working replacement should request confirmation of inspection and functional testing, where available. A photograph of the component and its labels is useful for identification but cannot demonstrate its operating performance.

Safe handling is also important when dealing with electronic assemblies. Electrostatic discharge can damage sensitive components, and improper installation may affect the board or the equipment in which it is fitted. The PCB should be handled using suitable ESD precautions and installed by a qualified technician following the manufacturer's procedures. The equipment should be safely powered down before installation or removal.

Detailed specifications such as operating voltage, current rating, connector pinout, PCB dimensions, supported instrument models, communication interfaces, and firmware version are not confirmed by the photograph. These details should be obtained from the manufacturer's documentation or a qualified service provider rather than inferred from the visible components.

The Waters QSPI Degasser PCB 726000459 listing is intended to help buyers identify the electronic assembly for equipment maintenance and replacement evaluation. Please compare the visible identification numbers, serial number, revision markings, and physical layout with the original board before placing an order. Confirming compatibility and condition in advance can help reduce the risk of purchasing an unsuitable replacement component.

Applications of the Product

• Replacement assessment for a compatible Waters QSPI Degasser assembly.

• Maintenance of laboratory analytical instrumentation.

• Electronic troubleshooting and repair by qualified technicians.

• Spare-parts inventory for laboratory service departments.

• Inspection and refurbishment of compatible electronic assemblies.

• Identification and traceability of laboratory equipment replacement parts.

These are potential applications. Compatibility with a specific instrument must be verified.

2.3 Product Features

• Manufacturer identification: Waters.

• Product label: QSPI Degasser.

• Barcode/part label: 726000459.

• Serial number: 140073220.

• Additional PCB label: 6512-6029.

• Revision marking appears to read REV L.

• Dark-blue printed circuit board.

• Surface-mounted electronic components.

• Printed component reference markings.

• Barcode labels for product identification and traceability.

• Intended for compatibility-based replacement assessment.

2.4 Technical Specifications
