The VEXTA PK244-01A-C124 is a 2-phase stepping motor manufactured by Oriental Motor Co., Ltd. under the VEXTA brand. The motor label visible in the photograph clearly identifies the model as PK244-01A-C124, with a 1.8° step angle, DC 4 V rating and 1.2 A current rating. The label also identifies the motor as being made in Japan. These specifications are consistent with published listings for the same Oriental Motor VEXTA model. Aeliya Marine Tech

The 1.8° step angle provides approximately 200 full steps per revolution, making this type of motor suitable for controlled incremental positioning when operated with a compatible stepper-motor driver. The PK244-01A-C124 is a compact industrial stepping motor intended for motion-control applications where repeatable angular positioning is required.

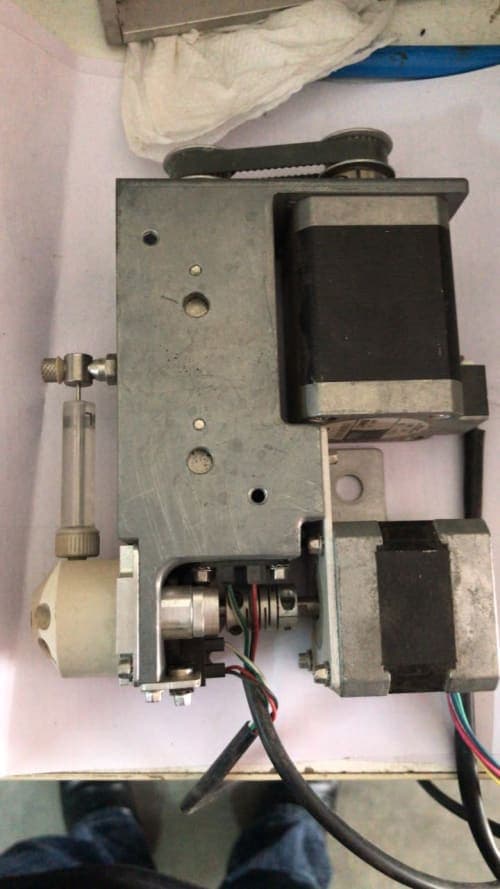

The photographed assembly also includes an additional motor/component mounted behind the main VEXTA motor. Since the exact model and specifications of the rear component are not sufficiently visible, this listing is based on the clearly identifiable VEXTA PK244-01A-C124 motor. The motor should be matched with an appropriate driver and wiring configuration before operation.

Applications

The VEXTA PK244-01A-C124 can be used in precision motion-control applications where controlled incremental rotation is required. Typical applications for compatible stepping motors include laboratory automation, positioning mechanisms, instrumentation, machine automation, feeders, actuators and other equipment requiring controlled rotary movement.

This motor can also be useful as a replacement component for older automation equipment and laboratory instruments using the same Oriental Motor/VEXTA motor model. Exact mechanical mounting, shaft configuration, driver compatibility and electrical requirements should be checked before installation.

Main Features

• VEXTA stepping motor by Oriental Motor Co., Ltd.
• Model PK244-01A-C124
• 2-phase stepping motor
• 1.8° step angle
• DC 4 V rated voltage
• 1.2 A rated current
• Approximately 200 full steps per revolution
• Made in Japan
• Compact industrial motor construction
• Suitable for precision positioning and motion-control applications
• Useful as a replacement motor for compatible equipment

Technical Specifications

Benefits of Refurbished Laboratory Equipment

Refurbished stepping motors can provide a cost-effective replacement solution for laboratory instruments, automation equipment and industrial motion-control systems. Using a compatible replacement motor can help restore an existing mechanism without replacing the complete machine or positioning assembly.

The VEXTA PK244-01A-C124 is a model-specific component, making it particularly useful when maintaining equipment originally designed around this motor. Before installation, the motor's electrical rating, winding configuration, shaft dimensions, mounting pattern and driver compatibility should be compared with the original equipment requirements.

Additional Information

The main motor in the photograph is clearly identified as VEXTA PK244-01A-C124. Published listings for this exact model confirm the 2-phase, 1.8°/step, DC 4 V, 1.2 A specifications. Ram Automations

The photograph shows the motor mounted with another motor/component and wiring. The additional component has not been included as a separate product because its exact model cannot be reliably identified from the supplied image. Connector and wire colors should not be assumed to represent a standard wiring configuration; use the appropriate Oriental Motor documentation or test procedure when connecting the motor.
