Used Konica Minolta SRX-101A Tabletop Medical X-Ray Film Processor

The Konica Minolta SRX-101A Tabletop Medical Film Processor is an automatic radiographic film processing machine designed for medical imaging departments, diagnostic centres, hospitals, and facilities that use conventional X-ray film. This model processes compatible sheet films through a continuous roller transport system, combining developing, fixing, washing, and drying operations into a single processing workflow. Its tabletop design provides an integrated film processing solution for facilities that continue to use conventional film-based medical imaging.

The SRX-101A is designed to process sheet films ranging from 10 × 10 cm to 35 × 43 cm (14 × 17 inches). Its continuous roller transport mechanism moves films through the processing stages at a controlled rate. This automated process helps reduce manual handling and supports consistent film processing when the machine is correctly installed, maintained, and operated with compatible processing chemicals.

The processor offers selectable processing cycles of 90, 120, and 180 seconds, with cycle switching available through a service engineer. The appropriate cycle depends on the film type, processing chemistry, and imaging workflow. According to the manufacturer's documentation, the machine can process up to 75 sheets per hour for 24 × 30 cm or 10 × 12-inch film using the 90-second cycle, and up to 60 sheets per hour for 35 × 43 cm film. Actual throughput depends on the selected cycle, film size, and operating conditions.

The SRX-101A incorporates separate tanks for developer, fixer, and wash water. The documented tank capacities are approximately 3.9 litres for developer, 1.8 litres for fixer, and 1.4 litres for wash water. Its circulation and replenishment systems help maintain the processing solutions during operation. The developer temperature is monitored and controlled using a temperature sensor and heating system, while the drying temperature is automatically controlled according to the selected equipment settings. These features are important for producing appropriately processed radiographic films when the processor is operated according to the manufacturer's instructions.

The machine is designed for facilities requiring a dedicated processor for conventional radiographic film. Potential applications include processing compatible films generated by conventional X-ray imaging systems and other film-based medical imaging workflows. The exact film compatibility should be confirmed with the film manufacturer's recommendations and the processor's operating documentation.

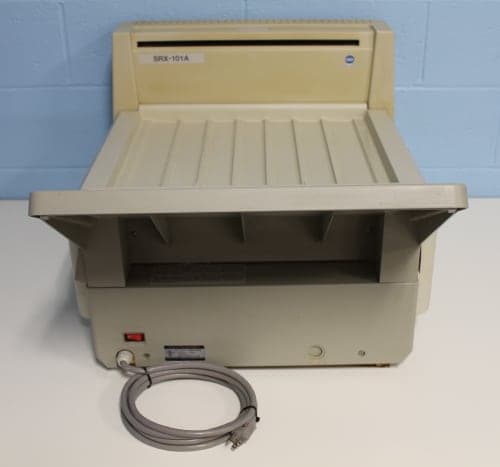

The supplied photograph shows the SRX-101A housing, film feed tray, rear power switch, power cable, and manufacturer identification. Its compact tabletop configuration may be suitable for an appropriately equipped imaging room or film processing area. Installation nevertheless requires suitable access to water, drainage, electrical power, processing chemicals, and ventilation, in accordance with the manufacturer's installation requirements.

For reliable operation, the developer and fixer solutions must be maintained at appropriate concentrations and temperatures. The processor's rollers, racks, tanks, water supply, and replenishment mechanisms also require regular cleaning and maintenance. Following the manufacturer's maintenance schedule helps prevent chemical contamination, processing artefacts, roller marks, and inconsistent image quality.

The SRX-101A may be considered by hospitals, radiology departments, diagnostic centres, medical colleges, and facilities that continue to use conventional radiographic film. Before purchasing a pre-owned unit, buyers should verify the operating condition of the transport mechanism, temperature controls, circulation pumps, replenishment system, drying unit, and electrical components. A functional test using compatible film and processing chemicals is recommended before clinical use.

Overall, the Konica Minolta SRX-101A is a tabletop automatic medical film processor intended to support conventional radiographic film workflows. Its processing-cycle options, continuous roller transport, solution tanks, temperature controls, and drying system make it a useful equipment option for facilities that require film-based imaging support. Its suitability depends on the condition of the individual unit, compatibility with the facility's film and chemistry, and the availability of appropriate servicing and consumables.

2.2. Applications of the Product

• Hospital radiology departments: Processing compatible conventional X-ray films.

• Diagnostic imaging centres: Supporting film-based radiographic imaging workflows.

• Medical facilities: Developing and fixing compatible radiographic sheet films.

• Orthopaedic clinics: Supporting conventional film-based imaging where still used.

• Medical colleges: Demonstrating conventional radiographic film processing.

• Radiology training facilities: Supporting education in film-based imaging techniques.

• Film-based diagnostic laboratories: Processing compatible medical imaging films.

• Legacy imaging systems: Supporting facilities that continue to operate conventional film-based X-ray equipment.

2.3. Product Features

• Konica Minolta SRX-101A medical film processor.

• Automatic continuous roller transport mechanism.

• Supports sheet film sizes from 10 × 10 cm to 35 × 43 cm.

• Selectable 90-, 120-, and 180-second processing cycles.

• Separate developer, fixer, and wash tanks.

• Developer temperature monitoring and heating.

• Automatic drying temperature control.

• Processing solution circulation and replenishment systems.

• Selectable standby functions.

• Tabletop configuration.

• Designed for compatible conventional medical radiographic films.

2.4. Technical Specifications

Specifications are based on the SRX-101A operation and service manuals. Electrical supply varies by version; verify the unit's rating plate before connecting it.

2.5. Product Condition

Recommended condition: Used / Pre-owned

The supplied image shows a previously used tabletop processor. The photograph alone cannot confirm that all processing, heating, circulation, and drying functions operate correctly.

Suggested condition statement:

“Pre-owned Konica Minolta SRX-101A tabletop medical film processor. Supplied condition and accessories are subject to inspection. Operating functions, processing quality, electrical configuration, and water connections should be verified before installation and use.”

Select Refurbished only if the machine has undergone appropriate servicing and functional testing.
