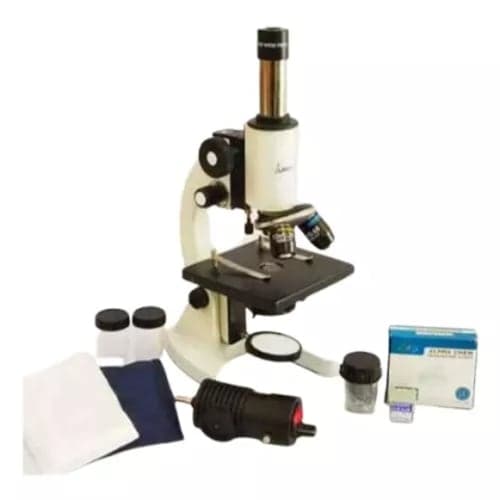

The Techtom LHM 9 Student Microscope with Movable Condenser is a practical and versatile laboratory microscope designed for students, educational institutions, training laboratories and routine microscopy applications. It combines essential optical and mechanical features in a straightforward configuration, making it a convenient choice for laboratories that need a dependable microscope for regular specimen observation and teaching.

The microscope is equipped with a monocular viewing system, hygienic eyepiece and 10X quadruple revolving nosepiece, allowing users to quickly switch between objectives during observation. The included 10X, 40X and 100X achromatic objectives, including a 100X oil immersion objective, provide a useful range of magnification for examining prepared biological and laboratory specimens.

For convenient specimen handling, the microscope features a 120 × 120 mm stage with stage clips to help hold slides securely during observation. Separate coarse and fine focusing controls allow users to quickly locate a specimen and then make more precise focusing adjustments. The rack-and-pinion focusing mechanism provides smooth mechanical movement for routine laboratory use.

A major advantage of the LHM 9 is its movable 1.25 NA Abbe condenser with iris diaphragm. The condenser can be moved vertically to optimize illumination and focus the light appropriately for different objectives. This gives students and laboratory users greater control over viewing conditions and makes the microscope suitable for learning fundamental microscopy techniques.

Applications of Techtom LHM 9 Student Microscope

The Techtom LHM 9 Student Microscope is an excellent choice for schools, colleges, universities, biology laboratories, medical training institutes and laboratory training centers. Its simple monocular design makes it particularly suitable for student laboratories where ease of operation and practical learning are important.

The microscope can be used for observing prepared slides, biological specimens, cells, tissues, microorganisms, plant sections and other transparent samples. The combination of 10X, 40X and 100X objectives allows users to move from general specimen location to higher-magnification observation when more detail is required.

Main Features of Techtom LHM 9 Student Microscope

• Techtom LHM 9 student microscope for education and routine laboratory use
• Monocular straight viewing system for straightforward operation
• Hygienic eyepiece for comfortable observation
• 10X quadruple revolving nosepiece for quick objective changes
• 10X, 40X and 100X achromatic objectives
• 100X oil immersion objective for high-magnification observation
• 120 × 120 mm stage provides convenient slide positioning
• Stage clips help keep specimens securely positioned
• Separate coarse and fine focusing for easier specimen focusing
• Rack-and-pinion coarse focusing mechanism
• Screw-type fine focusing mechanism for precise adjustment
• 1.25 NA Abbe condenser for controlled illumination
• Movable condenser allows convenient vertical adjustment
• Iris diaphragm provides illumination control
• Suitable for student training, teaching and routine microscopy

Technical Specifications Techtom LHM 9 Student Microscope

Specification	Details
Brand	Techtom
Model	LHM 9
Product Type	Student Microscope
Viewing Body	Monocular
Viewing Tube	Straight Monocular Tube
Eyepiece	Hygienic Eyepiece
Nosepiece	10X Quadruple Revolving Nosepiece
Objective Type	Achromatic
Objectives	10X, 40X & 100X Oil Immersion
Stage Size	120 × 120 mm
Stage	Stage with Stage Clips
Focusing	Separate Coarse & Fine Focusing
Coarse Movement	Rack & Pinion
Fine Movement	Screw Lever Mechanism
Condenser	Abbe Condenser
Condenser NA	1.25 NA
Condenser Type	Movable
Condenser Movement	Up & Down through Rack & Pinion
Diaphragm	Iris Diaphragm
Condition	Brand New

Benefits of Brand New Laboratory Equipment

Choosing the Techtom LHM 9 Student Microscope gives educational and laboratory buyers a new microscope configured with the essential features required for routine microscopy training and specimen observation. Its practical design makes it easy for students to learn objective selection, focusing, specimen positioning and illumination adjustment.

The combination of three commonly useful objectives and a movable Abbe condenser provides flexibility for different microscopy exercises. The mechanical stage and separate coarse/fine focusing controls also make the instrument easier to operate during repeated laboratory sessions.

For institutions purchasing multiple microscopes, the LHM 9 can be a practical addition to student laboratory benches, biology teaching laboratories and microscopy training facilities where straightforward operation and useful optical magnification are important purchasing considerations.

Additional Information

The Techtom LHM 9 is supplied as brand-new laboratory equipment with the optical and mechanical configuration described above. The microscope is suitable for routine educational and laboratory microscopy applications.

The 100X oil immersion objective can be used with suitable immersion oil when high-magnification observation is required. Slides, immersion oil and other laboratory consumables may be purchased separately depending on the required setup.

• National Center for Biotechnology Information
• National Library of Medicine

Brand New Condition

This is a brand-new Techtom LHM 9 Student Microscope with Movable Condenser. The microscope is supplied as new laboratory equipment with the optical and mechanical configuration specified above. Accessories and consumables may vary depending on the selected configuration.
