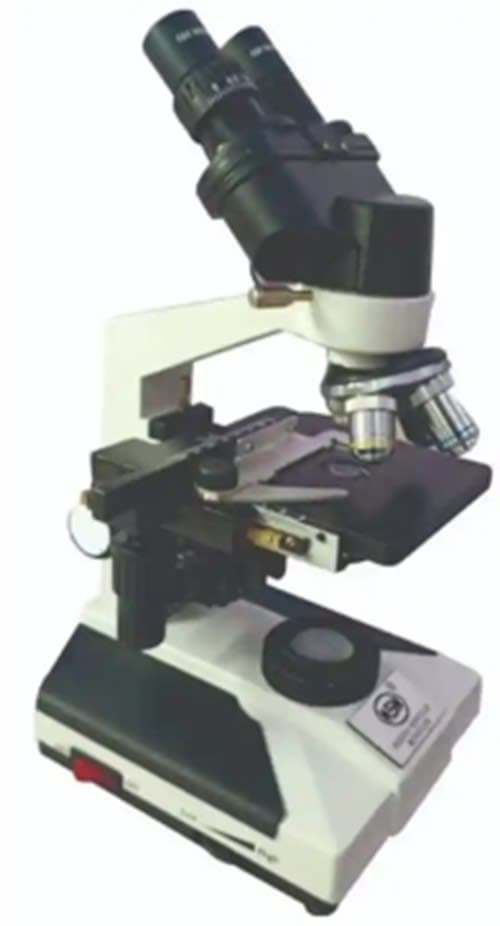

The Techtom LHM 15 Binocular Lab Pathological Microscope is a professional laboratory microscope designed for pathological examination, biological observation, educational laboratories and routine microscopic analysis. Its binocular viewing configuration provides a comfortable observation experience, making it well suited for extended laboratory sessions where clear and convenient specimen viewing is required.

The microscope features Wide Field WF 10X eyepieces and a quadruple revolving nosepiece with ball-bearing construction, allowing users to conveniently switch between objectives. Its achromatic objective configuration includes 4X NA 0.10, 10X NA 0.25, 40X NA 0.65 and 100X NA 1.25 oil immersion, providing a broad magnification range from low-power specimen scanning to detailed high-magnification pathological and biological observation.

A graduated mechanical stage with a 145 × 125 mm stage area provides a stable platform for specimen positioning. The 80 mm × 50 mm moving range and co-axial mechanical controls allow smooth movement of slides across the viewing area, making it easier to locate and examine different regions of a specimen.

The optical system is supported by an Abbe condenser with NA 1.25 and iris diaphragm, together with a swing-out filter holder. The condenser can be moved vertically up and down to optimize illumination for different objectives and specimens, providing users with greater control during microscopic examination.

Applications of Techtom LHM 15 Binocular Microscope

The Techtom LHM 15 is suitable for pathology laboratories, biological laboratories, medical and educational institutions, research facilities and microscopy training environments. Its binocular design and wide objective range make it suitable for routine examination of prepared slides and biological specimens.

The 4X objective can be used for initial specimen scanning, while the 10X and 40X objectives provide progressively higher magnification for detailed observation. The 100X NA 1.25 oil immersion objective is suitable for applications requiring high-resolution observation of appropriately prepared specimens.

Main Features of Techtom LHM 15 Binocular Microscope

• Techtom LHM 15 binocular laboratory microscope
• Designed for pathological and biological microscopy applications
• Binocular viewing system for comfortable observation
• Wide Field WF 10X eyepieces
• Quadruple revolving nosepiece with ball-bearing construction
• 4X, 10X, 40X and 100X oil immersion achromatic objectives
• Graduated mechanical stage measuring 145 × 125 mm
• 80 × 50 mm mechanical stage moving range
• Co-axial mechanical stage controls
• Abbe condenser with 1.25 NA
• Iris diaphragm for illumination control
• Swing-out filter holder
• Movable condenser with vertical up-and-down adjustment
• Suitable for routine laboratory and pathological microscopy

Technical Specifications

Specification	Details
Brand	Techtom
Model	LHM 15
Product Type	Binocular Lab Pathological Microscope
Eyepiece	Wide Field WF 10X
Viewing System	Binocular
Nosepiece	Quadruple Revolving Nosepiece
Nosepiece Type	Ball Bearing
Objective Type	Achromatic
Objective 1	4X, NA 0.10
Objective 2	10X, NA 0.25
Objective 3	40X, NA 0.65
Objective 4	100X, NA 1.25, Oil Immersion
Mechanical Stage	Graduated Mechanical Stage
Stage Area	145 × 125 mm
Moving Range	80 × 50 mm
Stage Controls	Co-Axial Controls
Condenser	Abbe Condenser
Condenser NA	1.25
Diaphragm	Iris Diaphragm
Filter System	Swing-Out Filter Holder
Condenser Movement	Up and Down
Condition	Brand New

Benefits

The Techtom LHM 15 provides laboratories with a new binocular microscope configured for a wide range of microscopy requirements. Its four-objective optical system allows users to move efficiently between low, medium, high and oil-immersion magnification, making it a flexible choice for laboratories handling different types of prepared specimens.

The binocular viewing system, co-axial mechanical stage and movable Abbe condenser make the microscope practical for repeated laboratory use. The large graduated stage provides convenient specimen positioning, while the 100X oil immersion objective enables high-magnification examination when required.

For pathology teaching laboratories, medical institutions, biological science departments and research environments, the LHM 15 offers a practical combination of optical versatility, mechanical specimen control and adjustable illumination in one laboratory microscope.

Additional Information of Techtom LHM 15 Binocular Microscope

The Techtom LHM 15 is supplied as brand-new laboratory equipment with the optical and mechanical configuration specified above. It is suitable for pathology, biology, education, research and general laboratory microscopy applications.

The 100X oil immersion objective is intended for use with suitable immersion oil during high-magnification observation. Microscope slides, immersion oil and other laboratory consumables may be supplied separately depending on the selected configuration.

• National Center for Biotechnology Information
• National Library of Medicine

Brand New Condition

This is a brand-new Techtom LHM 15 Binocular Lab Pathological Microscope. The microscope is supplied as new laboratory equipment with the optical and mechanical configuration specified above. Accessories and consumables may vary depending on the selected configuration.
