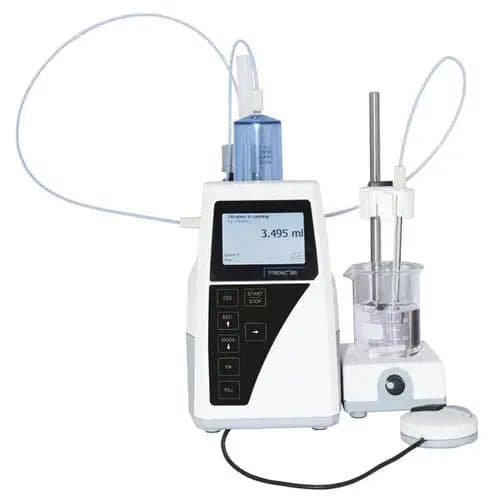

The SI Analytics TitroLine 5000 is a compact automatic titrator designed for routine potentiometric titration and laboratory analytical applications. The instrument shown in the photograph is clearly identified as SI Analytics TitroLine 5000 and is equipped with a titration stand, dosing assembly, bottle, tubing and associated laboratory accessories.

The TitroLine 5000 supports titrations to pH and mV endpoints, as well as titration to equivalence points using linear or dynamic reagent addition. It can also perform manual titrations and dosing tasks. The system provides a graphical TFT display and can document results, including titration curves, through connected USB storage or compatible printers. Xylem Analytics

The photographed setup includes the TitroLine 5000 controller, a vertical titration assembly and reagent bottle. The exact dosing-unit capacity and electrode configuration are not completely identifiable from the photograph, so the listing does not assign a specific 20 mL or 50 mL dosing configuration unless verified separately. The TitroLine 5000 is designed to accept interchangeable 20 mL and 50 mL dosing units. Xylem

Applications

The SI Analytics TitroLine 5000 can be used for routine analytical titration in water and wastewater analysis, food and beverage testing, environmental laboratories and chemical laboratories. Typical applications include pH, alkalinity, chloride, acidity and other potentiometric measurements. Xylem Analytics

Additional applications include total Kjeldahl nitrogen, permanganate index/COD, FOS/TAC and chloride determination when the appropriate method, electrode and reagents are used. The instrument can also be used for general dosing tasks and manually controlled titration procedures. Fisher Scientific

Main Features

• SI Analytics TitroLine 5000 automatic titrator
• Potentiometric pH and mV titration capability
• Titration to pH and mV endpoints
• Linear and dynamic titration to equivalence points
• Manual titration and dosing functions
• Interchangeable 20 mL and 50 mL dosing units
• Graphical 3.5-inch TFT color display
• 8000-step burette resolution
• pH measurement and calibration capability
• Pt 1000 / NTC temperature measurement input
• USB-A and USB-B interfaces
• Two RS-232 interfaces
• Compatible magnetic stirrer connection
• Supports standard analytical titration methods
• Results can be documented through USB storage
• Suitable for laboratory routine analysis Xylem Analytics

Technical Specifications

Published SI Analytics specifications confirm the TitroLine 5000's pH/mV measurement ranges, interchangeable 20/50 mL dosing units, 8000-step burette resolution, 100–240 V supply, USB/RS-232 interfaces and 135 × 310 × 205 mm dimensions. Xylem Analytics

Benefits of Refurbished Laboratory Equipment

A refurbished SI Analytics TitroLine 5000 provides laboratories with a cost-effective option for performing routine potentiometric titrations without purchasing a new automatic titrator. Its compact design and interchangeable dosing system make it suitable for laboratories that need flexible titration and reagent-dosing capabilities.

Refurbished titration equipment can be useful for chemical laboratories, environmental testing facilities, educational institutions, food and beverage laboratories and industrial R&D departments. The instrument can also serve as a replacement or additional titrator where compatible electrodes, dosing units and accessories are available.

Additional Information

The photographed instrument shows visible cosmetic wear, scratches, dirt and discoloration consistent with previously used laboratory equipment. The display is not visibly active in the photograph, and the operational condition of the electronics, dosing motor, valve assembly, electrode input and magnetic stirrer should therefore be verified before use.

The exact dosing-unit capacity, electrode, titration vessel, tubing configuration and accessories shown should be confirmed before purchase. The TitroLine 5000 can use 20 mL or 50 mL interchangeable dosing units, but the exact configuration of this particular unit is not confirmed from the photograph. Xylem Analytics

• SI Analytics TitroLine 5000 – Xylem
• SI Analytics TitroLine 5000 Product Catalog
• SI Analytics TitroLine 5000 Operating Manual

Refurbished Condition

This is a refurbished SI Analytics TitroLine 5000 Automatic Titrator. The instrument has been professionally inspected and tested. Reagents, accessories, software and consumables may vary depending on availability.
