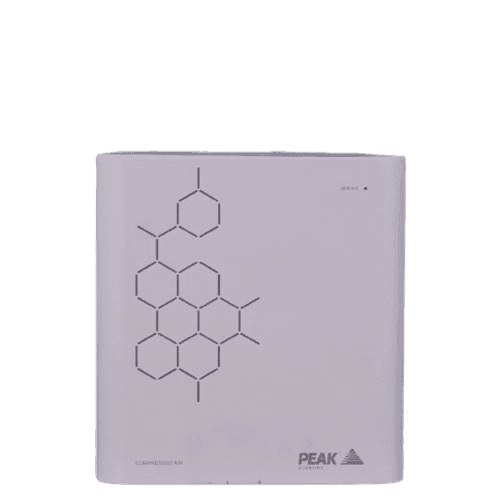

The PEAK Scientific Precision Air Compressor is a dedicated laboratory compressed-air source designed to provide a reliable supply of compressed air for compatible PEAK Scientific Precision Nitrogen and Precision Zero Air gas generators. The unit shown is clearly identified as a Precision Air Compressor on the manufacturer's rating label and carries the PEAK Scientific branding.

The photographed rating plate identifies the unit as a PEAK Scientific Precision Air Compressor, with a maximum output pressure of 120 PSI. The label also shows a 220–240/208–230 V electrical configuration and 50/60 Hz operation. The serial number visible on the label is AC15-06-068. PEAK Scientific documentation confirms that the Precision Air Compressor is designed as a dedicated compressed-air source for Precision-series gas generators and can be installed as part of a stackable laboratory gas-generation system.

The Precision Air Compressor uses a duplex compressor mounting arrangement designed to reduce transmitted vibration and noise. It provides compressed air through a 1/4-inch BSPP gas outlet and is designed for laboratory environments with a maximum operating temperature of approximately 35 °C.

The photographed unit shows significant cosmetic wear, scratches, staining and surface marks from previous laboratory use. The rear panel provides visible access to the compressed-air output, electrical connection and ventilation areas.

Applications

The PEAK Scientific Precision Air Compressor is primarily intended to provide compressed air to compatible Precision Nitrogen and Precision Zero Air generators. A single compressor can support both compatible generator modules when installed in the appropriate Precision stack configuration.

This type of dedicated laboratory compressor is particularly useful in analytical laboratories where a suitable house compressed-air supply is unavailable or where an independent compressed-air source is preferred. PEAK Scientific identifies the Precision platform for laboratory gas solutions including applications associated with GC and other analytical instrumentation.

Main Features

• PEAK Scientific Precision Air Compressor
• Dedicated laboratory compressed-air source
• Designed for Precision Nitrogen and Precision Zero Air generators
• Maximum output pressure of 120 PSI / 8.3 bar
• 1 × 1/4-inch BSPP gas outlet
• 220–240/208–230 V electrical configuration shown on rating label
• 50/60 Hz operation
• Duplex compressor mounting system
• Reduced vibration and noise transmission
• Stackable Precision-series design
• Suitable for laboratory analytical gas-generation systems
• Compact laboratory footprint
• Service and maintenance-oriented design
• PEAK Scientific manufactured equipment
• Serial number visible: AC15-06-068

Technical Specifications

PEAK Scientific's published specifications confirm a 120 PSI / 8.3 bar maximum output pressure, 1 × 1/4" BSPP outlet, 110/230 V versions, 50/60 Hz operation, approximately 510/1150 W power consumption, maximum operating temperature of 35 °C and dimensions of approximately 406 × 380 × 540 mm, with a listed weight of approximately 42 kg.

Benefits of Refurbished Laboratory Equipment

Refurbished laboratory compressors can provide laboratories with access to established compressed-air technology at a lower acquisition cost than purchasing new equipment. The PEAK Scientific Precision Air Compressor is specifically designed for integration with Precision-series gas generators, making it useful where an independent compressed-air supply is required.

Before laboratory installation, the compressor should be inspected and tested for compressor operation, output pressure, air leakage, flow performance, electrical safety, vibration, noise and filter/service condition. The compressor should also be matched with the connected gas generator to ensure that the required pressure and airflow specifications are satisfied.

Additional Information

This PEAK Scientific Precision Air Compressor is a previously used laboratory unit with visible cosmetic wear, scratches, staining and surface marks. The manufacturer's label identifies the unit as a Precision Air Compressor and shows a maximum output pressure of 120 PSI.

The photographed unit's visible serial number is AC15-06-068. The exact service history, internal compressor condition, filters, maintenance status and operating hours should be verified before purchase. Tubing, fittings and other accessories may vary depending on availability.

• PEAK Scientific
• PEAK Scientific Precision Air Compressor
• PEAK Scientific Precision Air Compressor Datasheet
• PEAK Scientific Downloads

Refurbished Condition

This is a refurbished PEAK Scientific Precision Air Compressor. The instrument has been professionally inspected and tested. Reagents, accessories, software and consumables may vary depending on availability.
