Ocean Optics USB4000 Fiber Optic Spectrometer

The Ocean Optics USB4000 Fiber Optic Spectrometer is a compact optical measurement instrument designed to analyse light across a range of wavelengths. Manufactured by Ocean Optics, now associated with Ocean Insight, the USB4000 is a miniature spectrometer used in research laboratories, optical measurement systems, industrial testing, and scientific experiments.

The instrument receives light through a compatible optical fibre and separates it into its component wavelengths using an optical grating. A detector then converts the incoming light into an electrical signal, which can be processed by compatible software to produce a spectrum. The resulting data can help researchers examine light intensity, identify spectral features, and characterise the optical properties of samples.

The USB4000 is a modular spectrometer, meaning its optical configuration can vary according to the selected grating, entrance slit, filters, and other components. Consequently, the wavelength range and optical resolution depend on the particular configuration of the instrument. Buyers should confirm these details from the model documentation or configuration records before purchasing.

One important application of the USB4000 is absorbance and transmittance measurement. When combined with a suitable light source, optical fibre, sample holder, and compatible software, the instrument can measure how much light passes through a sample or is absorbed at different wavelengths. These measurements are useful in chemical analysis, material characterisation, and laboratory research.

The spectrometer can also be used for reflectance and fluorescence measurements when configured with appropriate optical accessories. Reflectance measurements help investigate how a material reflects incident light, while fluorescence measurements can detect light emitted by a sample following optical excitation. Other possible applications include colour measurement, illumination analysis, LED characterisation, and selected laser or plasma measurements. These applications require suitable configurations and validated measurement methods.

The USB4000 uses a compact optical bench and a linear CCD detector. Its small dimensions make it suitable for integration into laboratory setups where space is limited. The device supports USB communication and, in supported configurations, RS-232 serial communication. Its digital electronics and programmable input/output functions can support integration with other measurement equipment and experimental systems.

The spectrometer is useful for universities, optical research facilities, chemical laboratories, biotechnology research, and industrial quality-control environments. It can support experimental work involving optical signals, spectral comparisons, and the development of measurement systems. However, the spectrometer alone does not provide every component required for a complete measurement setup. Depending on the application, additional equipment such as a light source, fibre-optic cables, probes, cuvette holders, sampling accessories, and acquisition software may be necessary.

For laboratories purchasing a pre-owned USB4000, it is important to confirm that the instrument communicates correctly with a compatible computer and that its detector and optical components function properly. The condition of the fibre-optic connector, electrical connectors, enclosure, and any included accessories should also be inspected. Calibration status and wavelength accuracy should be checked where the intended application requires traceable measurements.

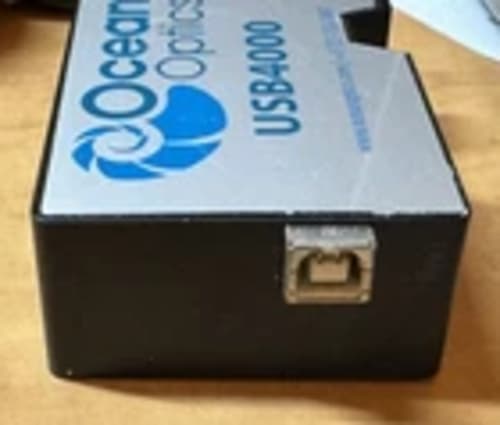

The supplied photograph clearly identifies the instrument as an Ocean Optics USB4000. However, it does not establish the exact optical configuration, wavelength range, calibration status, or operating condition. These details should be verified before the product is advertised as fully functional or suitable for a specific analytical application.

Overall, the Ocean Optics USB4000 is a compact and versatile spectrometer for laboratories requiring fibre-optic spectral measurements. Its suitability depends on the instrument's configuration, software compatibility, available accessories, and the requirements of the intended measurement.

2.2. Applications of the product

• Absorbance and transmittance: Measuring optical absorption and transmission through suitable samples.

• Reflectance spectroscopy: Investigating the optical properties of materials.

• Fluorescence measurements: Analysing emitted light with compatible excitation and collection accessories.

• Chemical analysis: Collecting spectra for laboratory investigations and method development.

• Colour measurement: Supporting selected colour-characterisation workflows.

• LED and lighting analysis: Examining the spectral output of light sources.

• Optical research: Studying wavelength-dependent light intensity.

• Industrial quality control: Supporting suitable optical inspection and measurement systems.

• Educational research: Demonstrating spectroscopic principles and optical analysis.

These applications depend on the optical configuration and the accessories used.

2.3. Product features

• Compact, miniature fibre-optic spectrometer.

• Ocean Optics USB4000 model identification.

• Linear CCD detector.

• Modular optical configuration.

• USB 2.0 computer interface.

• RS-232 communication support.

• SMA 905 fibre-optic input connector.

• Programmable digital input/output functions.

• Supports integration into compatible optical measurement systems.

• Suitable for laboratory research and industrial optical applications.

2.4. Technical specifications

Specifications are based on the USB4000 documentation. Detector range is not necessarily the usable wavelength range of the particular unit. Confirm the installed grating, slit, accessories, and configuration before publishing.
