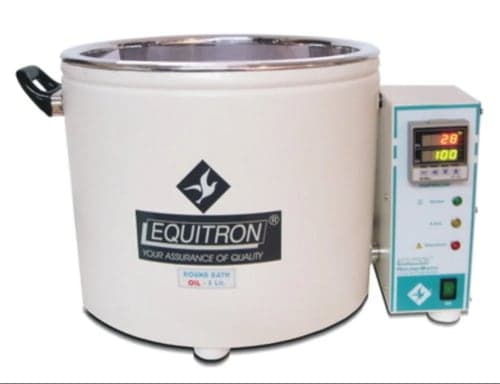

The Equitron Round Oil Bath is a digitally controlled laboratory heating bath designed for controlled heating of reaction vessels, flasks, samples and laboratory containers. The pictured unit features the EQUITRON branding, cylindrical round-bath construction and a separate digital temperature-control panel with dual digital displays for temperature monitoring and setting.

Equitron round oil baths are designed for laboratory applications including reactions, extractions, analysis and testing where controlled high-temperature heating is required. The round configuration provides a convenient heated environment around compatible laboratory vessels while the insulated double-wall construction helps improve thermal efficiency. Equitron Medica Instruments

The pictured unit appears to be the  clear-bottom oil-bath configuration. Equitron's  clear-bottom model is identified as #8485CBPO, with a bath size of approximately 260 mm diameter × 150 mm depth and an oil temperature range of ambient +10°C to 300°C. Because the exact model number is not visible in the photograph, the model should be verified from the rating/product label before purchase. Equitron Medica Instruments

Applications

The Equitron Round Oil Bath is suitable for controlled heating during laboratory chemical reactions, extraction procedures, sample preparation and analytical testing. Oil baths are particularly useful where temperatures higher than conventional water-bath operation are required.

Typical applications include chemistry laboratories, pharmaceutical research, formulation development, organic synthesis, extraction processes, material testing, biotechnology research and general laboratory heating applications.

Main Features

• Equitron round laboratory oil bath
• Digital temperature control
• Approximate upto 20L bath capacity configuration
• Clear-bottom design
• Cylindrical round bath chamber
• Stainless-steel internal chamber
• Double-wall insulated construction
• Digital PID temperature controller
• Dual-line digital temperature display
• High-temperature operation with suitable oil
• Ambient +10°C to approximately 300°C range for clear-bottom oil configuration
• Over-temperature protection
• Audio over-temperature alarm with automatic cut-off
• Floating overshoot alarm
• End-cycle visual indication with heater cut-off
• Peripheral stainless-steel immersion heater design
• Suitable for reactions, extractions, analysis and laboratory testing

Technical Specifications

Equitron's published specifications identify the #8485CBPO  clear-bottom oil bath with a 260 × 150 mm bath, ambient +10°C to 300°C oil temperature range and approximately 1300 W heating capacity. The manufacturer also describes a Pt100 sensor, PID control, overshoot protection and automatic over-temperature cut-off. rauserv.com

Benefits of Refurbished Laboratory Equipment

A refurbished Equitron oil bath provides laboratories with a practical and economical solution for controlled high-temperature heating. Its round design and digital temperature controller make it suitable for laboratories that require stable heating of reaction vessels and samples without investing in new equipment.

Refurbished laboratory heating equipment can be useful for research laboratories, educational institutions, pharmaceutical facilities, chemical laboratories and industrial testing environments. Before operation, the heating element, temperature controller, sensor, safety cut-off, wiring and chamber should be inspected and tested.

Additional Information

The photograph shows the Equitron round oil bath with its digital controller. The display is illuminated, but the photograph alone does not establish temperature accuracy, heater performance or safety-system functionality.

The exact model number, electrical version and supplied accessories should be verified before purchase. Heating oil is not assumed to be included unless specifically stated. The appropriate high-temperature bath oil should be selected according to the required operating temperature and application.

• Equitron Medica Instrument – Round Oil Baths
• Equitron Round Oil Bath – Immersion Series
• Equitron Round Oil Bath Technical Brochure

Refurbished Condition

This is a refurbished Equitron Round Oil Bath. The equipment has been professionally inspected and tested. The exact model, temperature accuracy, heater performance, PID controller, safety cut-off and electrical condition should be verified before laboratory use. Bath oil, glassware and other consumables may vary depending on availability.
