ENERPAC RC-1010 hydraulic cylinder.

The Enerpac RC-1010 Hydraulic Cylinder is a heavy-duty industrial hydraulic lifting and pushing component designed for applications requiring controlled linear force. It belongs to the Enerpac RC Series of general-purpose single-acting hydraulic cylinders and is designed to operate with a compatible high-pressure hydraulic pump and hose assembly.

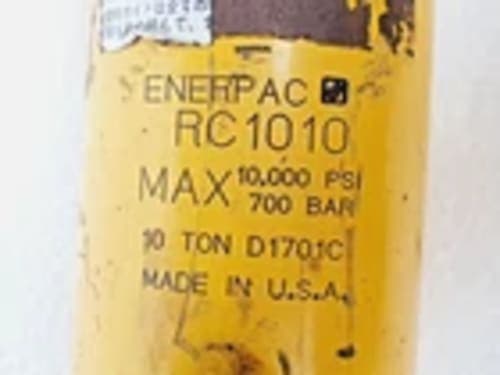

The identification label visible in the photograph indicates a rated capacity of 10 tons, a maximum operating pressure of 10,000 psi (approximately 700 bar), and manufacture in the USA. The RC-1010 model is associated with a long-stroke hydraulic cylinder design. Enerpac's documentation for the earlier RC-1010 version specifies a plunger stroke of 10¼ inches, while the current RC1010 product page lists a 10.13-inch stroke. The exact specification should therefore be matched to the cylinder's version and identification details.

Hydraulic cylinders operate by converting hydraulic pressure into mechanical force. When pressurized hydraulic oil enters the cylinder, it acts on the internal plunger, causing it to extend and apply force to a load. This makes hydraulic cylinders useful in applications where significant pushing or lifting force is needed within a relatively compact component.

The Enerpac RC-1010 is a single-acting cylinder, meaning hydraulic pressure drives the plunger in one direction, while an internal spring returns the plunger when pressure is released. This design simplifies the hydraulic arrangement compared with a double-acting cylinder, which uses hydraulic pressure to drive movement in both directions. The cylinder must be connected to a compatible pump and hydraulic system rated for the required pressure.

The cylinder's steel construction is intended for demanding industrial environments. Its long stroke makes it useful in applications requiring a greater range of linear movement than shorter-stroke hydraulic cylinders provide. Depending on the equipment design, a cylinder of this type may be used for lifting, pushing, positioning, pressing, or applying controlled force during maintenance and industrial operations.

The Enerpac RC-1010 is designed to operate at a maximum pressure of 10,000 psi. This pressure rating is a critical operating limit, not a recommended target to exceed. The cylinder must never be operated above its rated pressure or capacity, and the connected pump, hose, couplers, valves, and accessories must be suitable for the same hydraulic pressure class.

For buyers considering used industrial equipment, the cylinder's condition is especially important. Hydraulic seals, the plunger surface, the return spring, the hydraulic port, and the coupling must be inspected. Leaks, corrosion, scoring, damaged threads, or an inconsistent return action may indicate that servicing is required. A pressure rating printed on the label does not establish that an older cylinder remains safe or functional.

This Enerpac RC-1010 hydraulic cylinder may be suitable for industrial maintenance teams, manufacturing facilities, machine shops, hydraulic equipment service providers, and engineering workshops requiring a compatible hydraulic actuator. Before installation, the buyer should confirm the required stroke, mounting dimensions, hydraulic connection, pump compatibility, and load requirements.

Overall, the Enerpac RC-1010 is a 10-ton-class, high-pressure hydraulic cylinder intended for controlled industrial force applications. Its rated pressure, long-stroke design, and spring-return operation make it a useful component for compatible hydraulic systems when it is correctly selected, inspected, and maintained.

2.2. Applications of the Product

• Industrial lifting: Controlled lifting of compatible loads within rated limits.

• Machine maintenance: Hydraulic force for suitable maintenance and servicing operations.

• Manufacturing workshops: Pushing, positioning, or applying force to components.

• Engineering applications: Integration into compatible hydraulic tooling systems.

• Industrial pressing: Force application in suitable fixtures and press arrangements.

• Heavy equipment servicing: Hydraulic lifting or pushing during maintenance.

• Hydraulic tool systems: Use with compatible high-pressure pumps, hoses, and couplers.

All applications require appropriate load support, system compatibility, and compliance with the manufacturer's safety instructions.

2.3. Key Features

• Brand: Enerpac.

• Model: RC-1010.

• 10-ton rated capacity class.

• Maximum operating pressure of 10,000 psi (700 bar).

• Single-acting hydraulic operation.

• Internal spring return.

• Solid plunger construction.

• Steel cylinder body.

• Long-stroke configuration.

• Designed for use with compatible high-pressure hydraulic equipment.

• Made in the USA, as indicated on the label.

2.4. Technical Specifications

Specifications are based on Enerpac documentation for the RC-1010/RC1010 model family. Confirm the exact version before relying on dimensions, stroke, oil capacity, or connection details.

2.5. Product Condition

Suggested condition: Used / Pre-owned — inspection and testing required.

The photograph shows a previously used cylinder. Before resale or use, inspect the plunger, hydraulic port, seals, threads, and body for damage or leakage. Safe operation should be verified by a qualified hydraulic equipment technician.
